Coordinate Measuring Machine Wenzel LH 108

Information about the measuring device

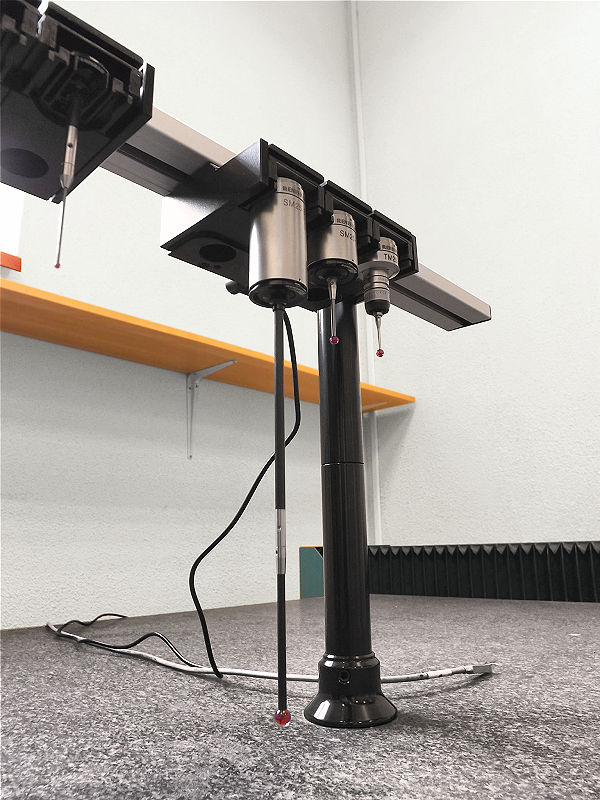

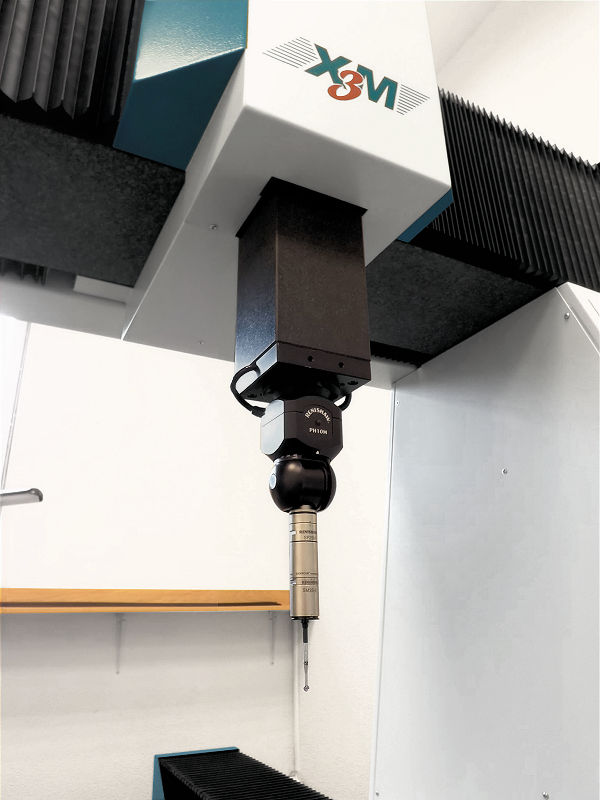

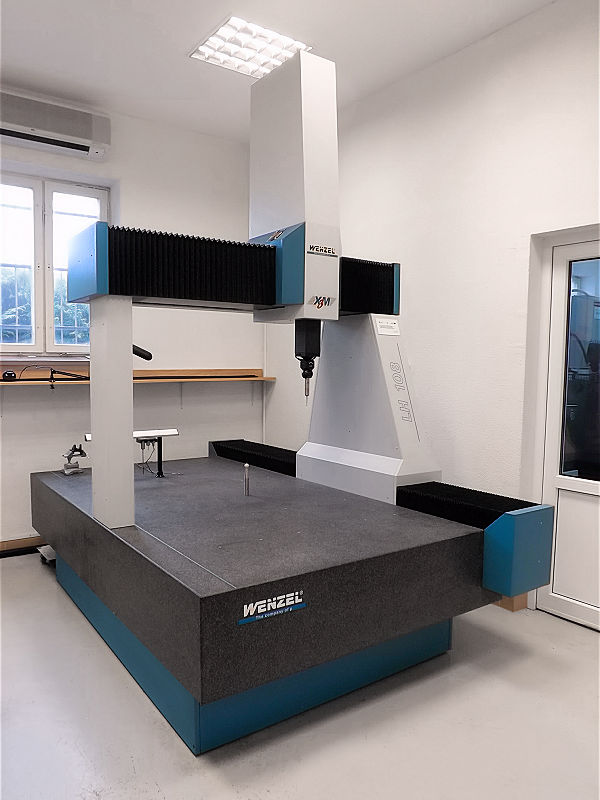

Our company owns gantry coordinate measuring machine Wenzel LH108 . The measuring range of this device is: X = 1000mm, Y = 2500mm, Z = 800mm. The accuracy of the machine: 2.7 + L / 350um. Device is equipped with a tilting-rotary head PH10M and scanning head SP25M with automatic probe rods replacement magazine. The allowed load of machine is 2500kg. Buying was supported by the European funds.

    Machine parameters

  • Measuring range (XYZ): 1000mm x 2500mm x 800mm
  • Measuring inaccuracy (L - długość w mm): U1=(2,7+L/350)µm; U3=(3,2+L/350)µm
  • Measurement uncertainty: 1,9µm
  • Max weight of the measured detail: 2500kg
  • Measuring head PH9 (Renishaw)

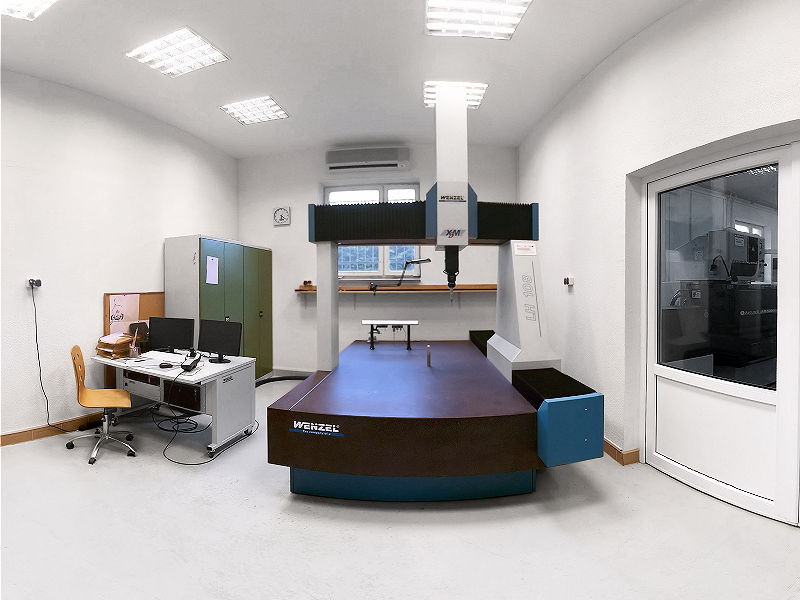

Pictures of machine
